225AH

Battery

1kW

Motor

60km

Range

500kg

Capacity

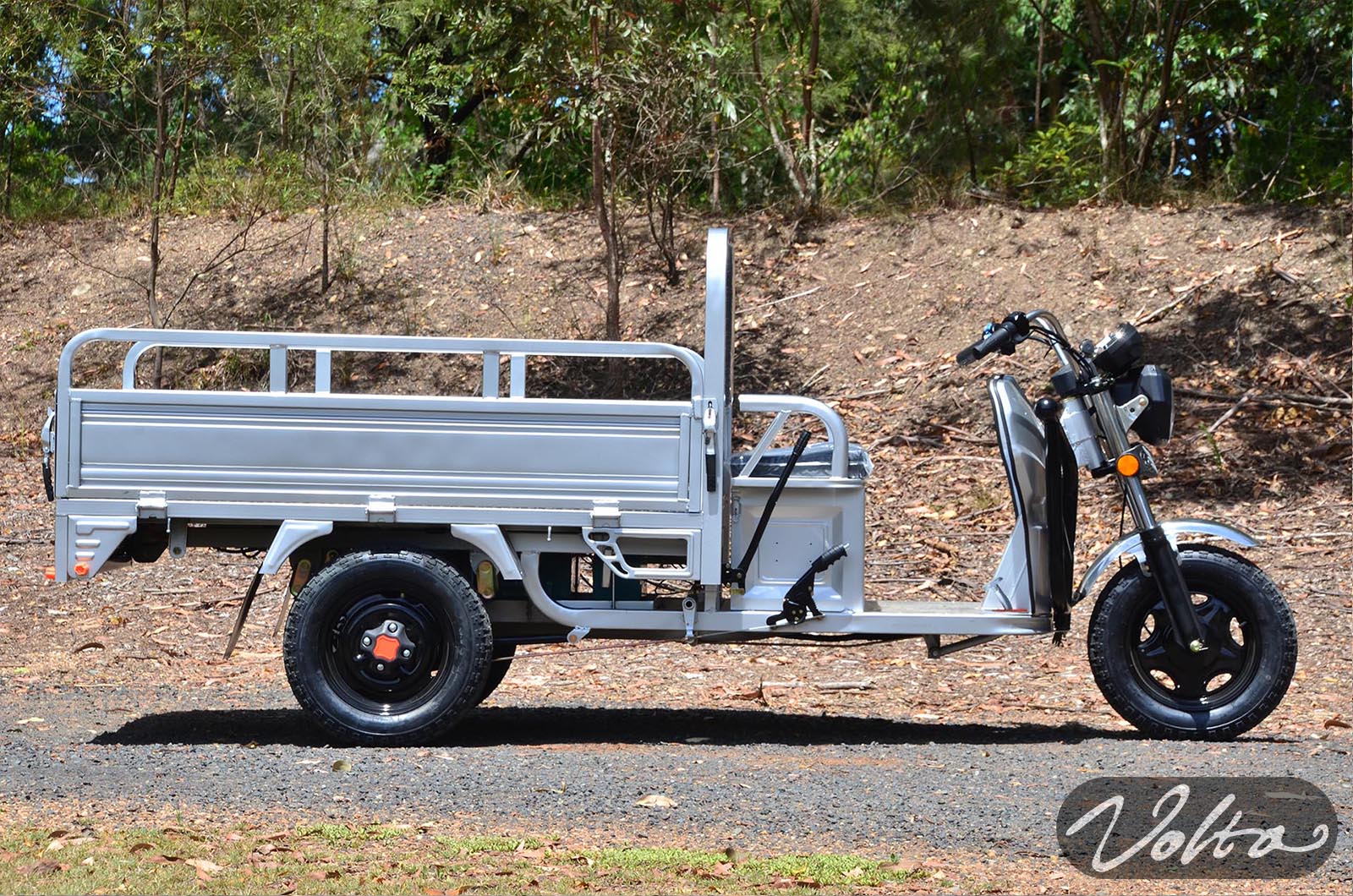

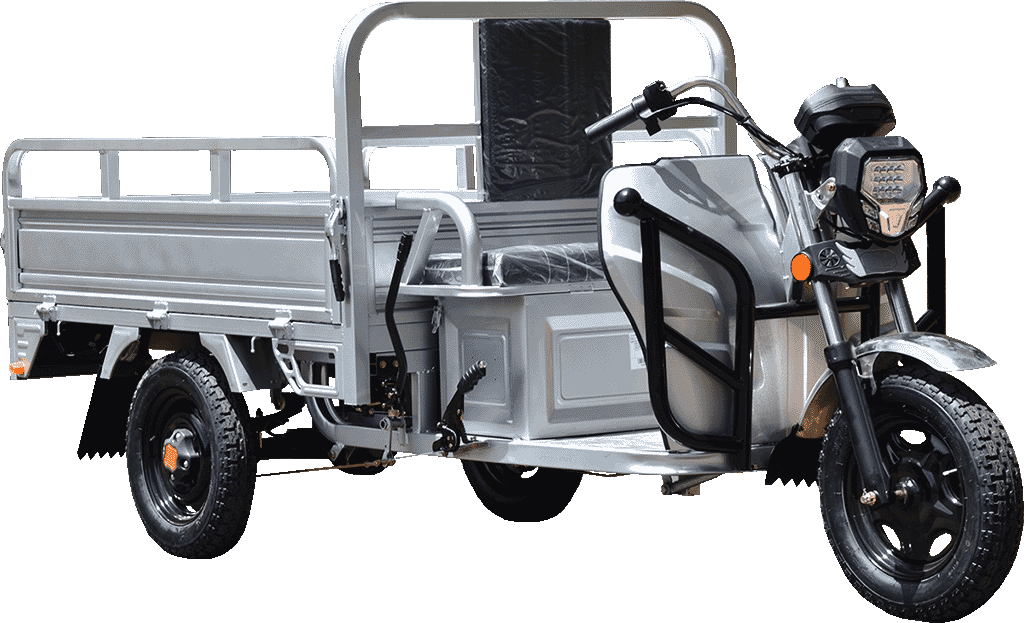

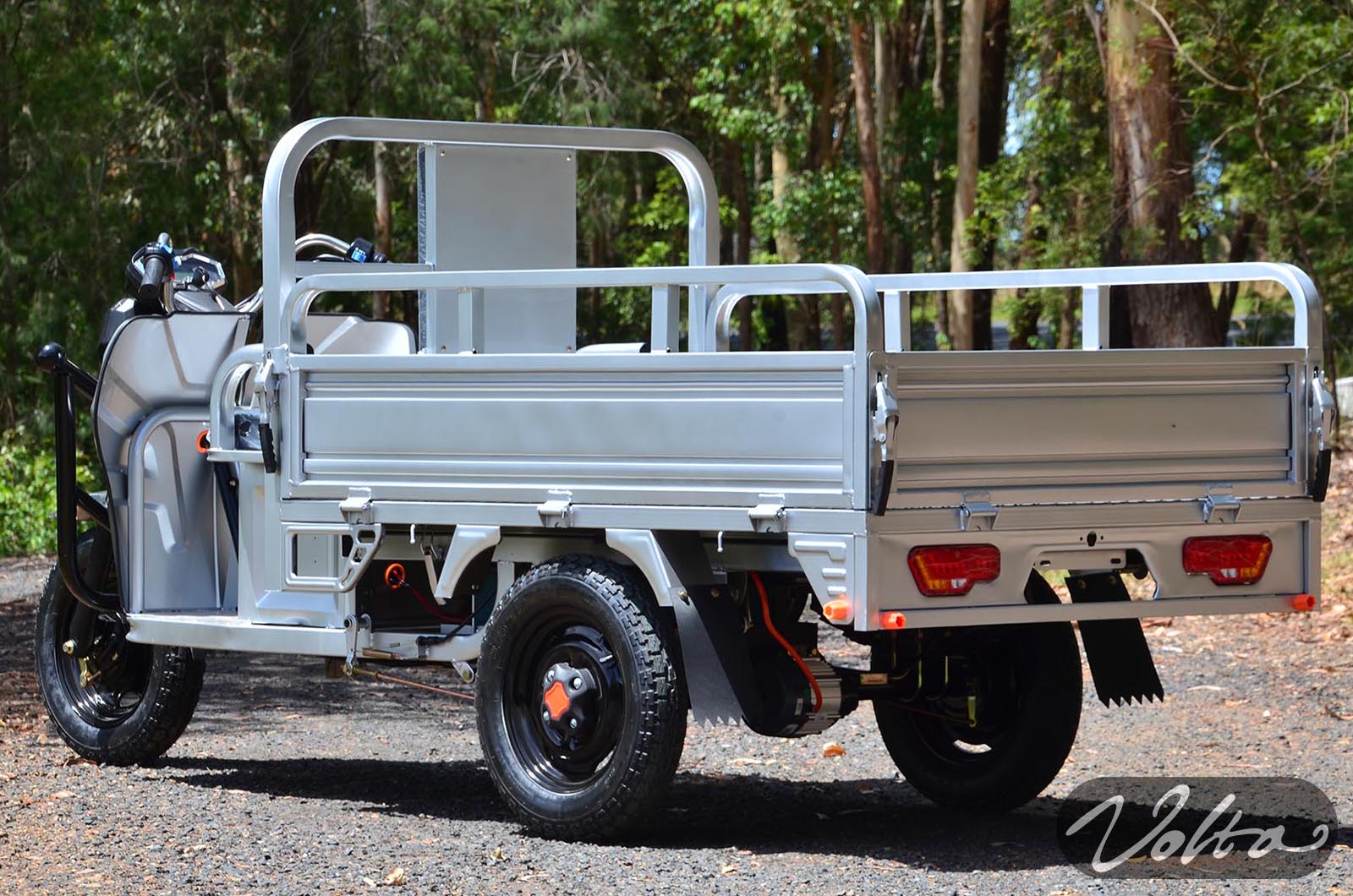

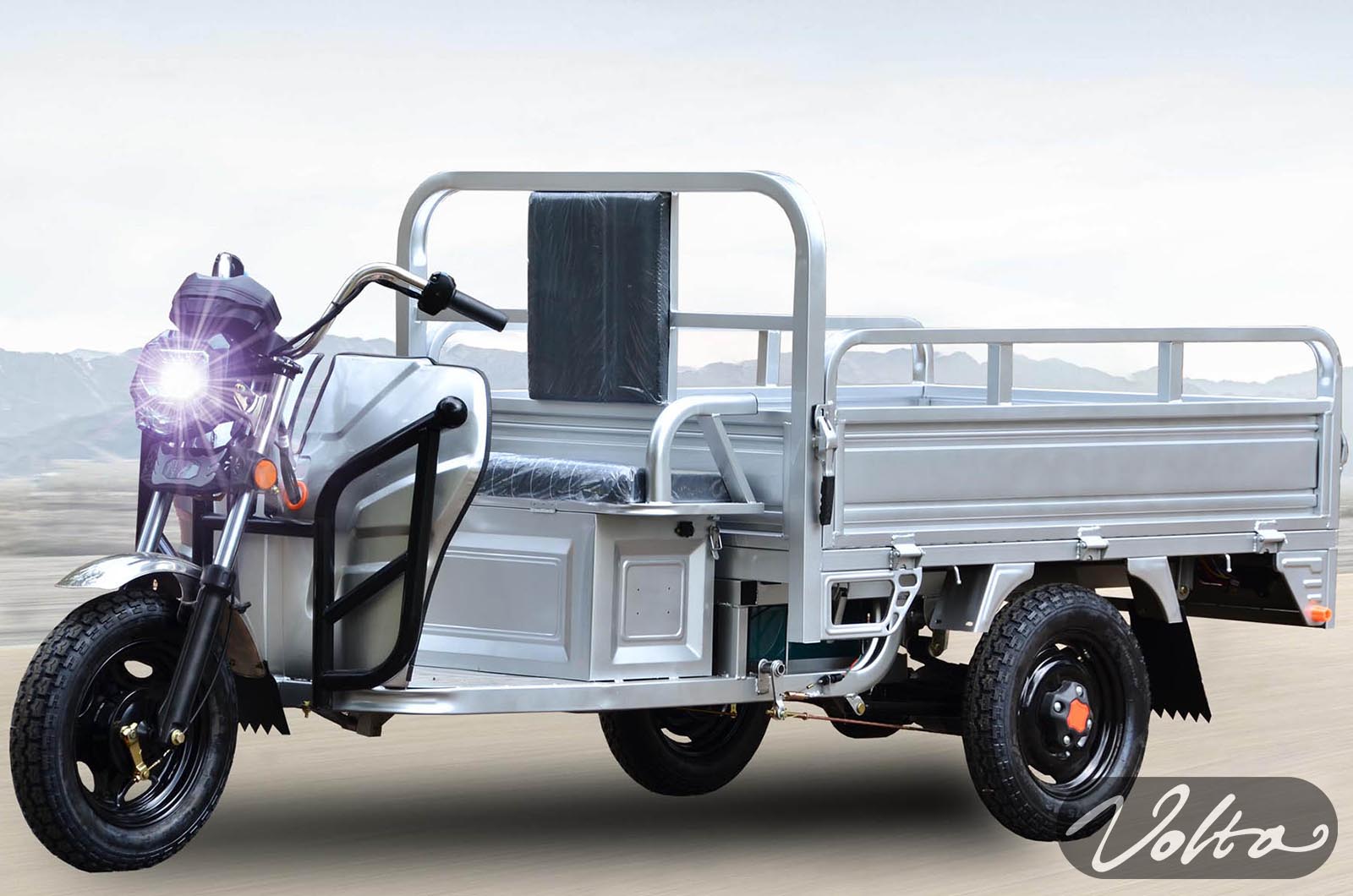

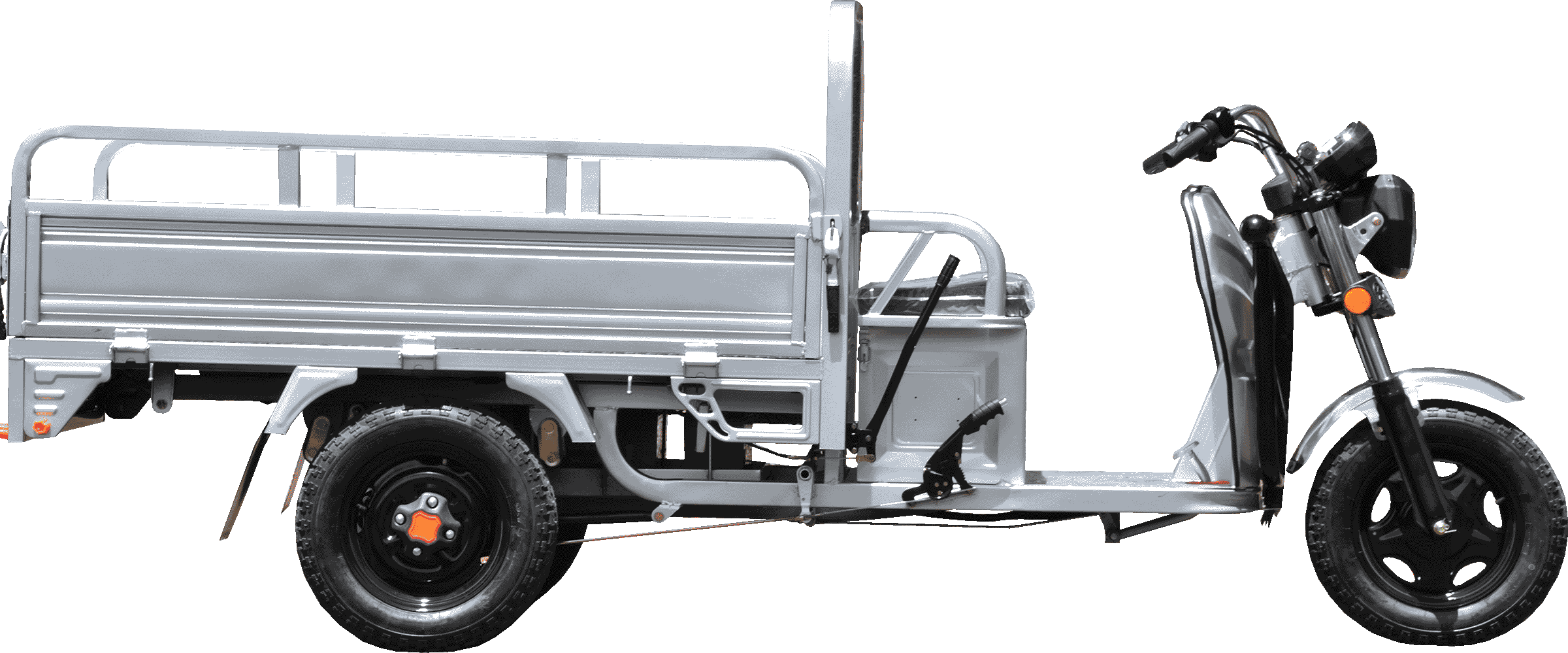

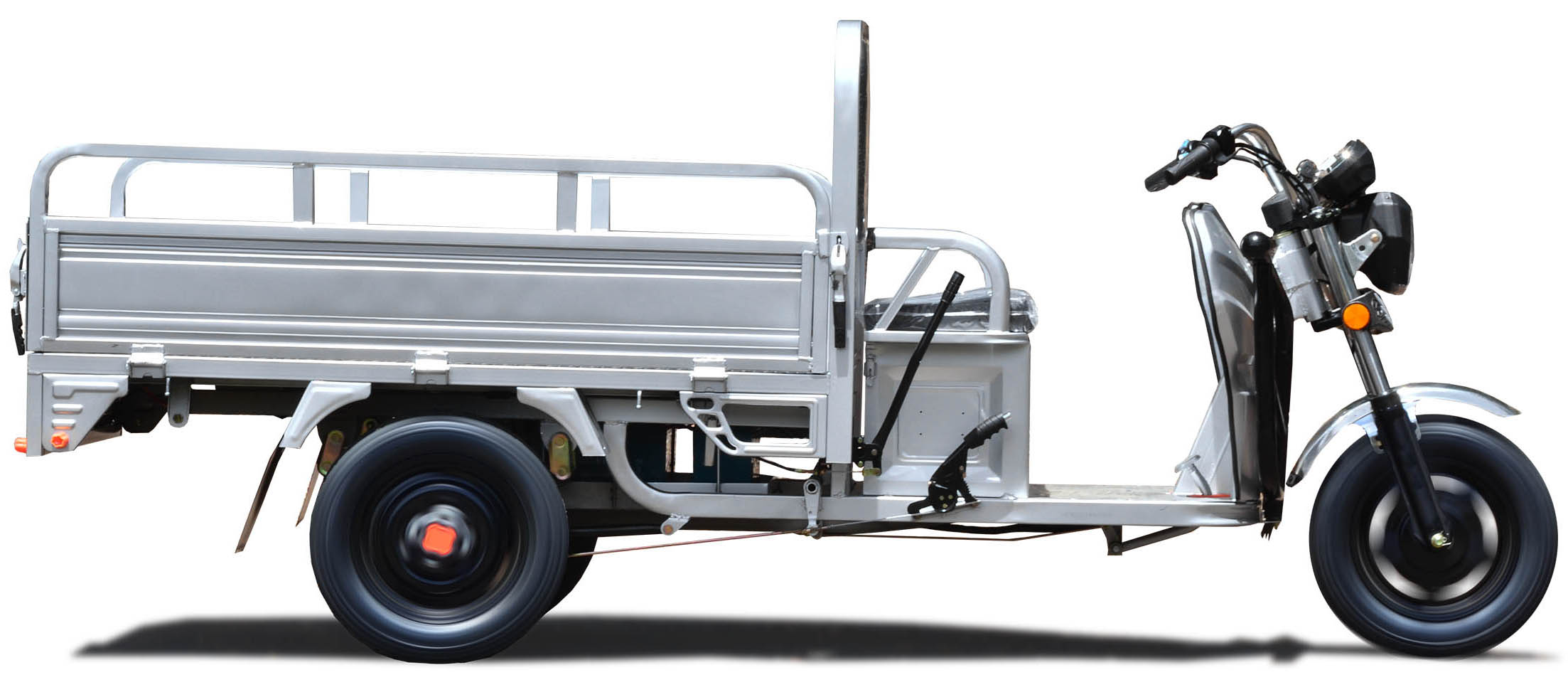

All-Electric UTV Cargo Trike



This impressive little machine has all the features you could ask for!



Cargo EV5 is fully electric, so you never need to visit a petrol station again! Cargo EV5 is a versatile, whisper quiet electric cargo trike, ideal for use on the farm, orchard, stables, vineyard, caravan park, golf course, sports grounds or resort – anywhere where you need to transport lightweight or bulky cargo quickly, quietly and with zero emissions.



With its 225 amp-hour battery pack, Cargo EV5 features a driving range of up to 60km on a single charge*. Conveniently charge your Cargo EV5 overnight on any standard 10 amp wall outlet – no electrician required!



Be mindful that just like an ATV, this vehicle is not road legal in Australia.

Read more



Just $4,997 Including GST



Enquire about this model



Specs at a glance



Battery

225AH / 13.5kWh



Range

Up to 60km



Drive

1kW Brushless Motor



Wheels

3.75-12 (Front)

4.00-12 (Rear)

Seating

1 Adult



Cargo

500kg



Max. Charge Speed

520W / 2.1A



Warranty

12 months back-to-base warranty*



So many uses...



Need to transport lightweight cargo quickly and quietly?



Cargo EV5 is equally at home on the farm, orchard, stables, vineyard, caravan park, golf course or resort



It's great for moving those lightweight or bulky loads such as hay bales, stock feed, fresh produce, sport equipment - you're limited only by your imagination



Maximized battery endurance

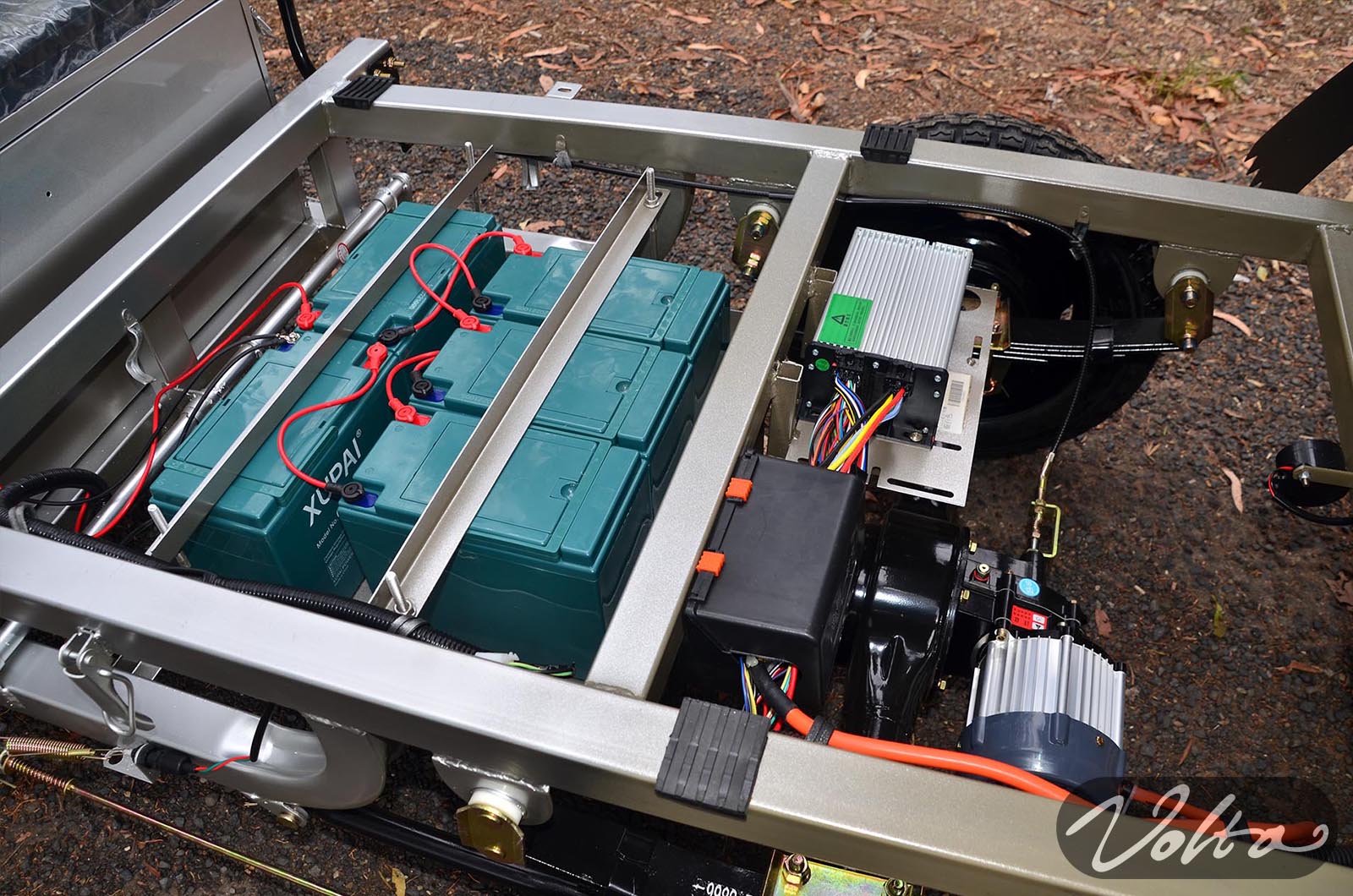

Cargo EV5 is equipped with a 225 Amp-Hour battery pack and incorporates innovative battery-saving technology.

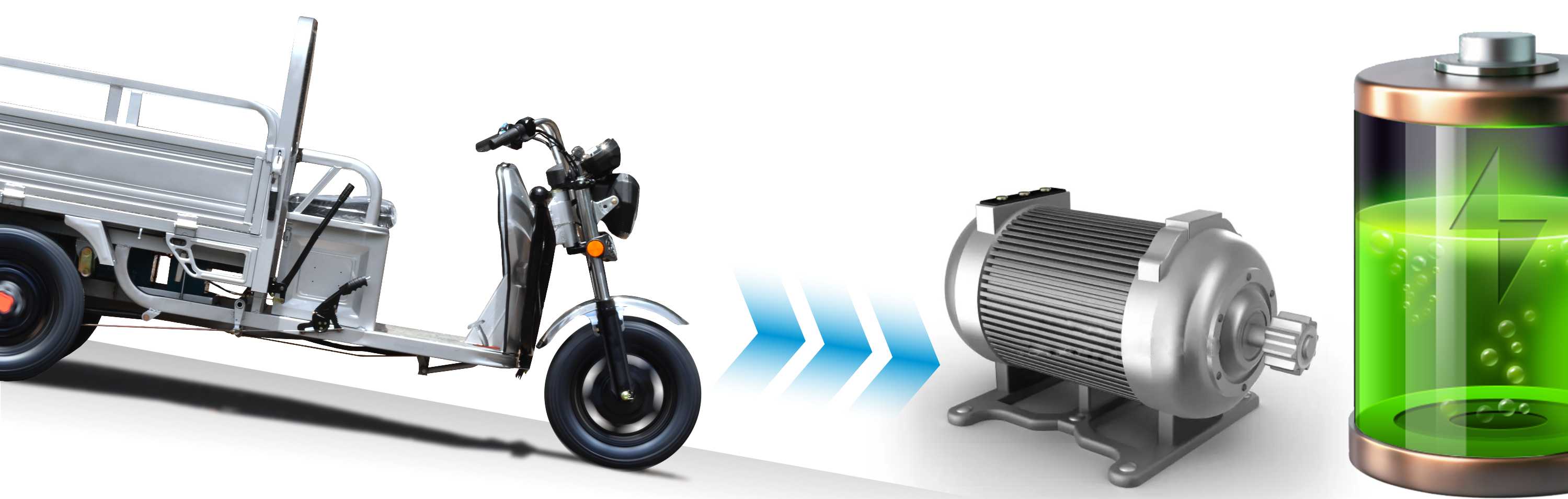

When a hill descent is detected, or travel speed exceeds motor speed, Cargo EV5 automatically cuts power to the motor to conserve battery.

Tried and tested, now it's electric



There's millions of them running on petrol in Asia and they carry just about anything - literally!



Now it's available all-electric - it's clean and quiet



We don't recommend these uses though...







Take it for a spin...



Keen to see if Cargo EV5 will suit your needs? Come and experience Cargo EV5 for yourself


Enquire about a FREE test drive of one of our demonstrator models...



Request a Test Drive



Detailed specifications

 Motor & Electrical

Motor Type

Permanent Magnet Brushless DC Electric Motor

Motor Power

1 kW @ 60 volts

Controller

1000W, 60 volts, 3 power levels (variable speed controller)

Maximum Speed

35 km/h Approx.

Transmission

Two-speed reduction gear differential (high & low range)

Maximum Torque

2 Nm @ 5,500 RPM motor speed

Climbing Gradient

8° Maximum

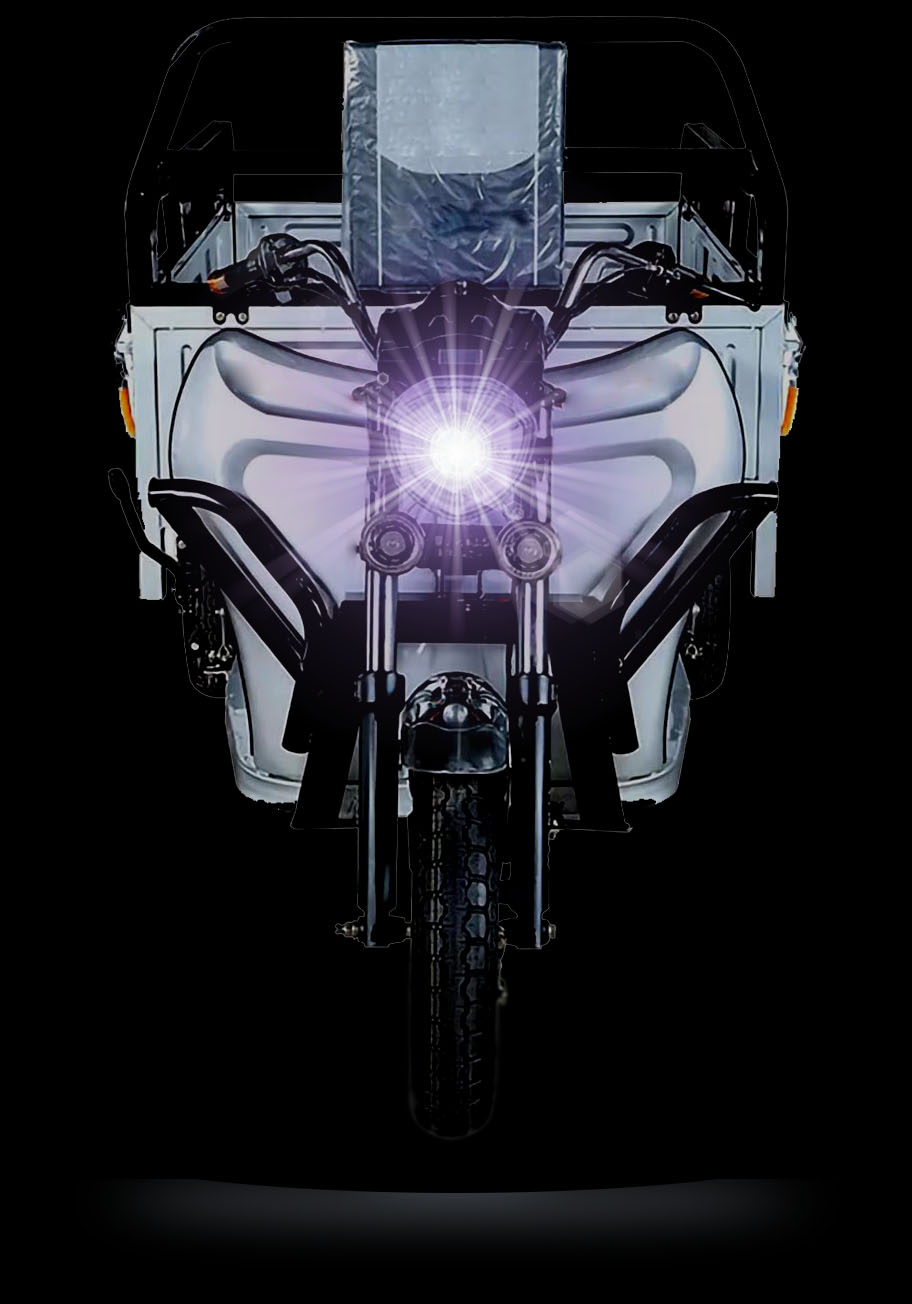

Lights

LED Driving Lights



 Batteries & Range

Capacity

225AH / 13.5kWh

Type

60V Lead Acid, Non-Spillable

Max. Charging Speed

Level 1 charging, 520W / 2.1A

Charger Input Voltage

220 – 240v AC @ 50 Hz

Charger Input Connector

ASNZS 3112 10A Plug

Charging Time

8-20 hours Approx. (depending on battery level)

Driving Range

60km Approx. (varies according to driving conditions)

 Wheels & Brakes

Front Tyres

3.75-12

Rear Tyres

4.00-12

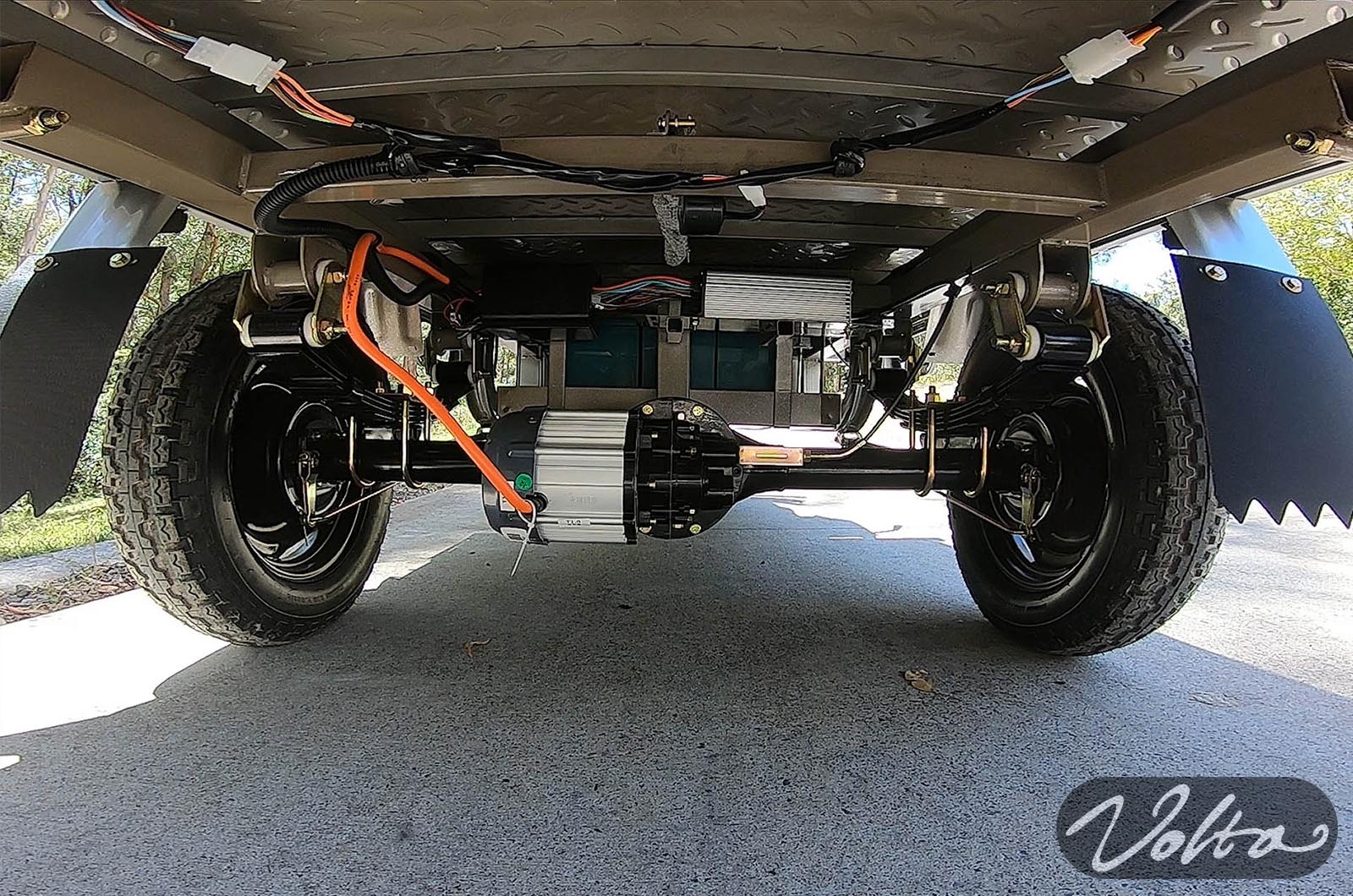

Rear Axle

Combined transaxle & differential

Front Suspension

Twin shock absorbers, ø31/ø35/ø37/ø43 (according to configuration)

Rear Suspension

4-leaf semi-elliptical leaf springs

Braking System

Mechanical drum brakes on all wheels

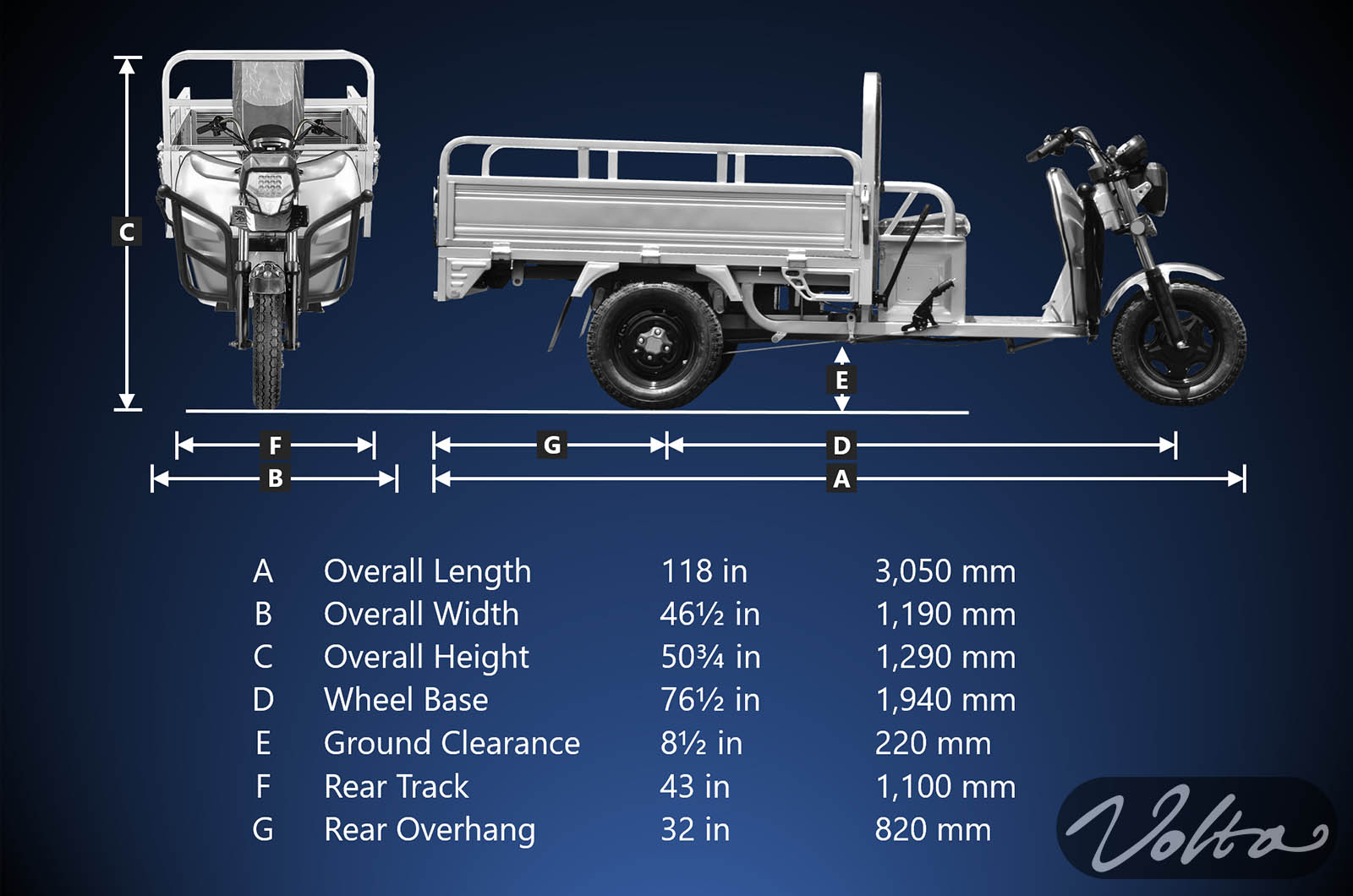

 Measurements

Cargo Capacity

Up to 500kg Approx. (250kg recommended)

Cargo Box

1,600 mm x 1,070 mm

Overall Length

3,050 mm

Overall Width

1,190 mm

Overall Height

1,290 mm

Wheelbase

1,940 mm

Rear Track

1,100 mm

Ground Clearance

220 mm


 Miscellaneous

Paint

Silver, two-coat acrylic. Can be touched up with enamel

Included Accessories

User manual, DC smart charger, rubber floor mat

More information



Learn more about this versatile EV, we invite you to download our FREE product brochure...



Still have questions? Contact Volta



Download FREE Brochure



Prestigious horse stud takes delivery...



Cargo EV5 found a home at one of Australia's most prestigious horse studs



What's in the box?



We've made sure all the necessary items are included with Cargo EV5 - we wanted to make sure we didn't leave anything out!





Cargo EV5 (of course!)

Detailed owner's manual

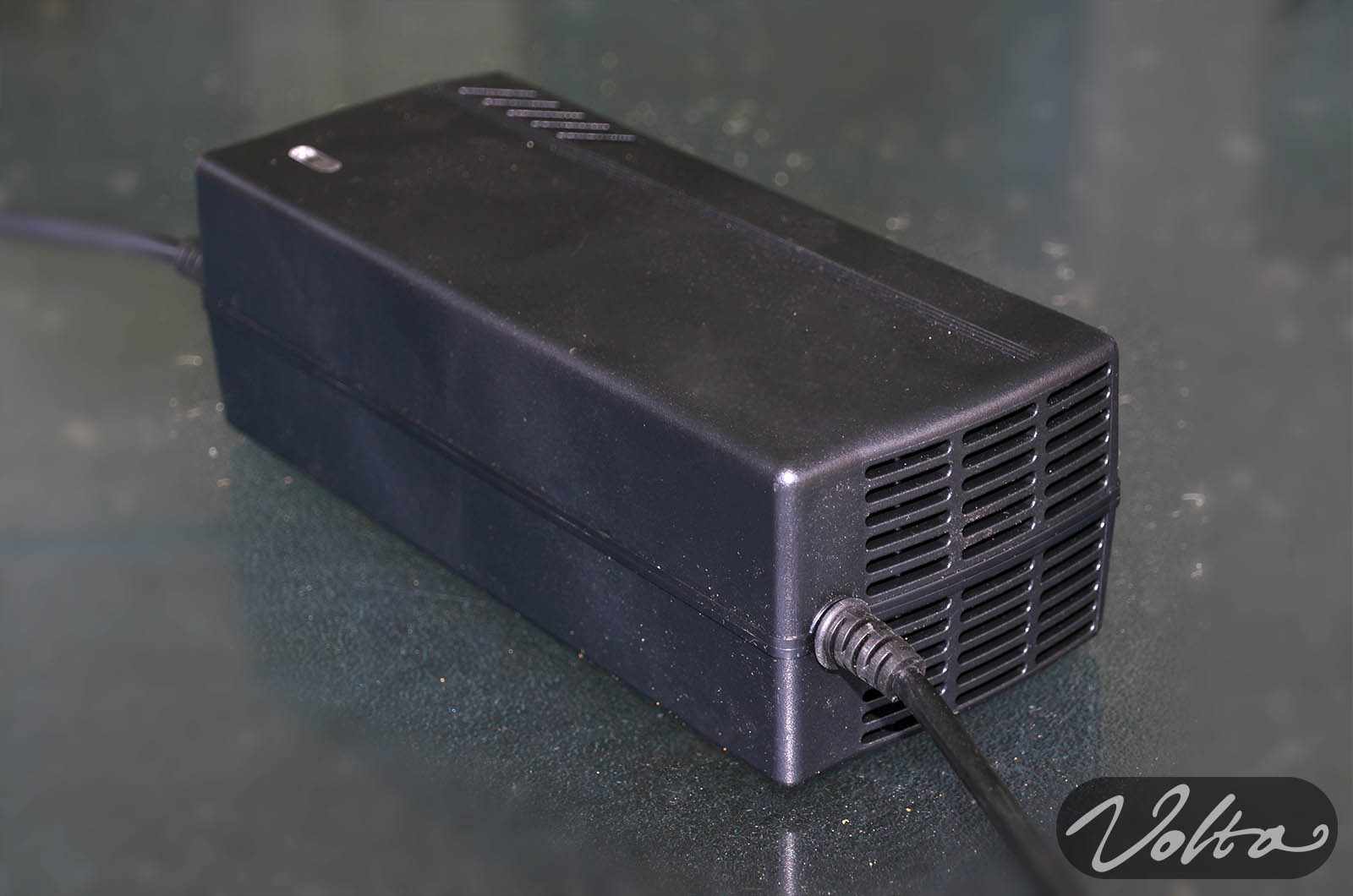

60V DC Smart Charger

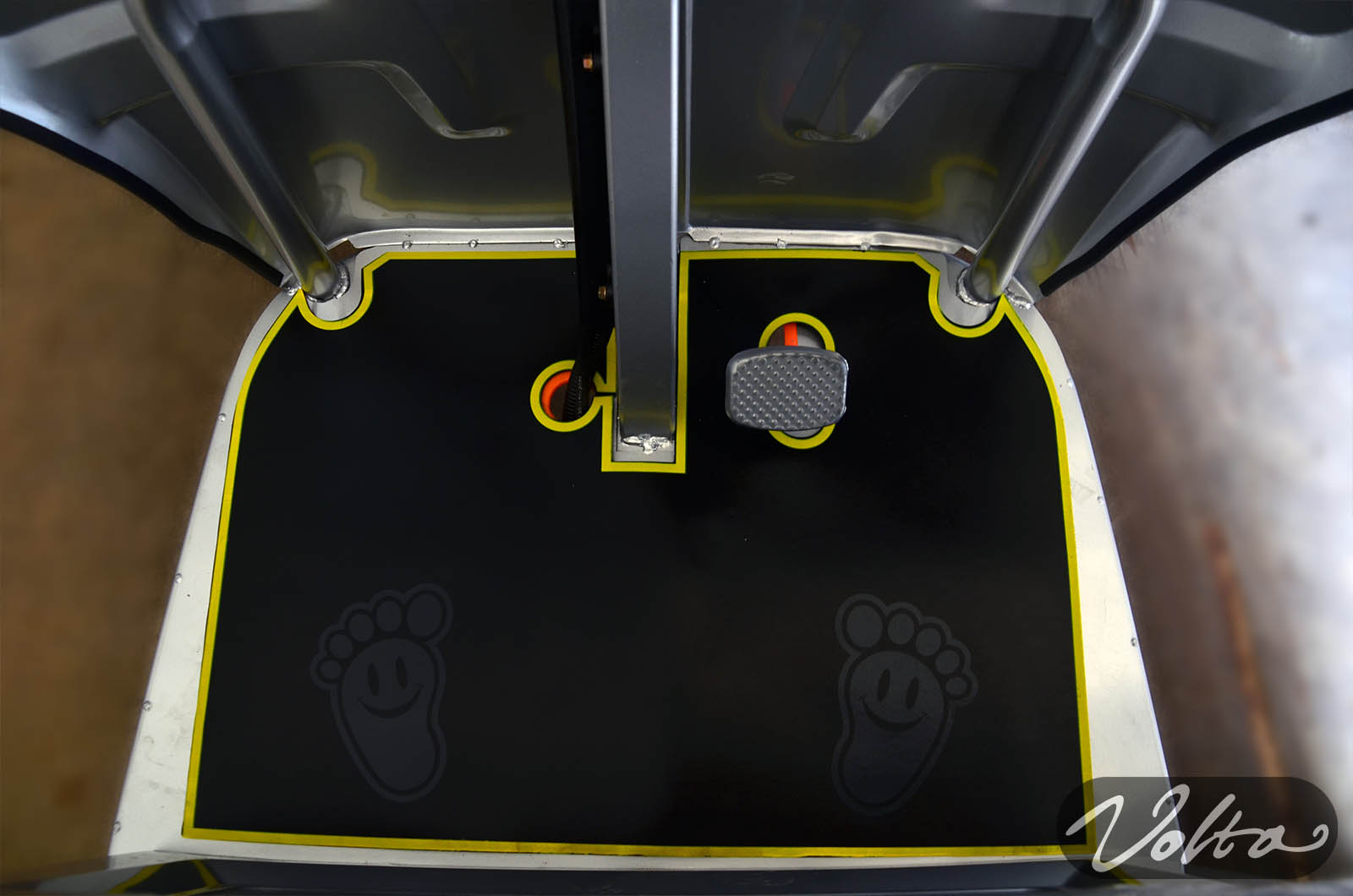

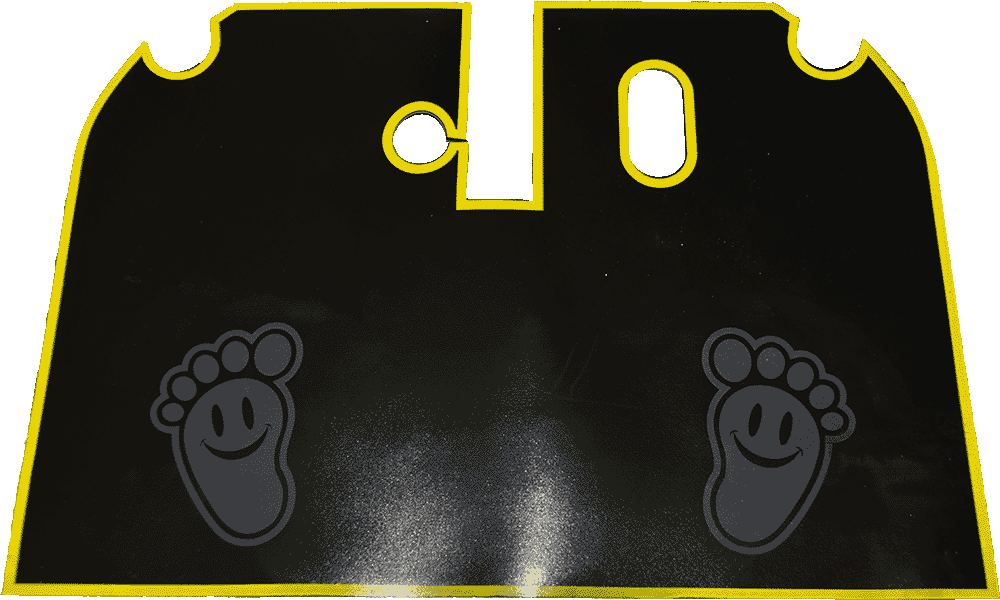

Bonus floor mat

All prices are inclusive of GST. This electric vehicle cannot be registered for road use, it cannot legally be used on public roads or footpaths in Australia and its Territories. Warranty is strictly back-to-base. For full terms and conditions for the warranty, please visit our warranty page. Offers and accessories are available only while stocks last and are subject to availability. Offers and/or included accessories may be withdrawn or changed without prior notice. Included bonuses may be changed for an alternative of lesser retail value at agents discretion. Package deal price(s) available only at designated marketing events or at dealers discretion. *Actual driving range may vary according to driving speed, uphill travel, heavy cargo load, tyre pressure, environmental conditions such as hot or cold weather, wind and other factors. Prices and specifications correct at time of publication but are subject to change and/or correction without prior notice.
